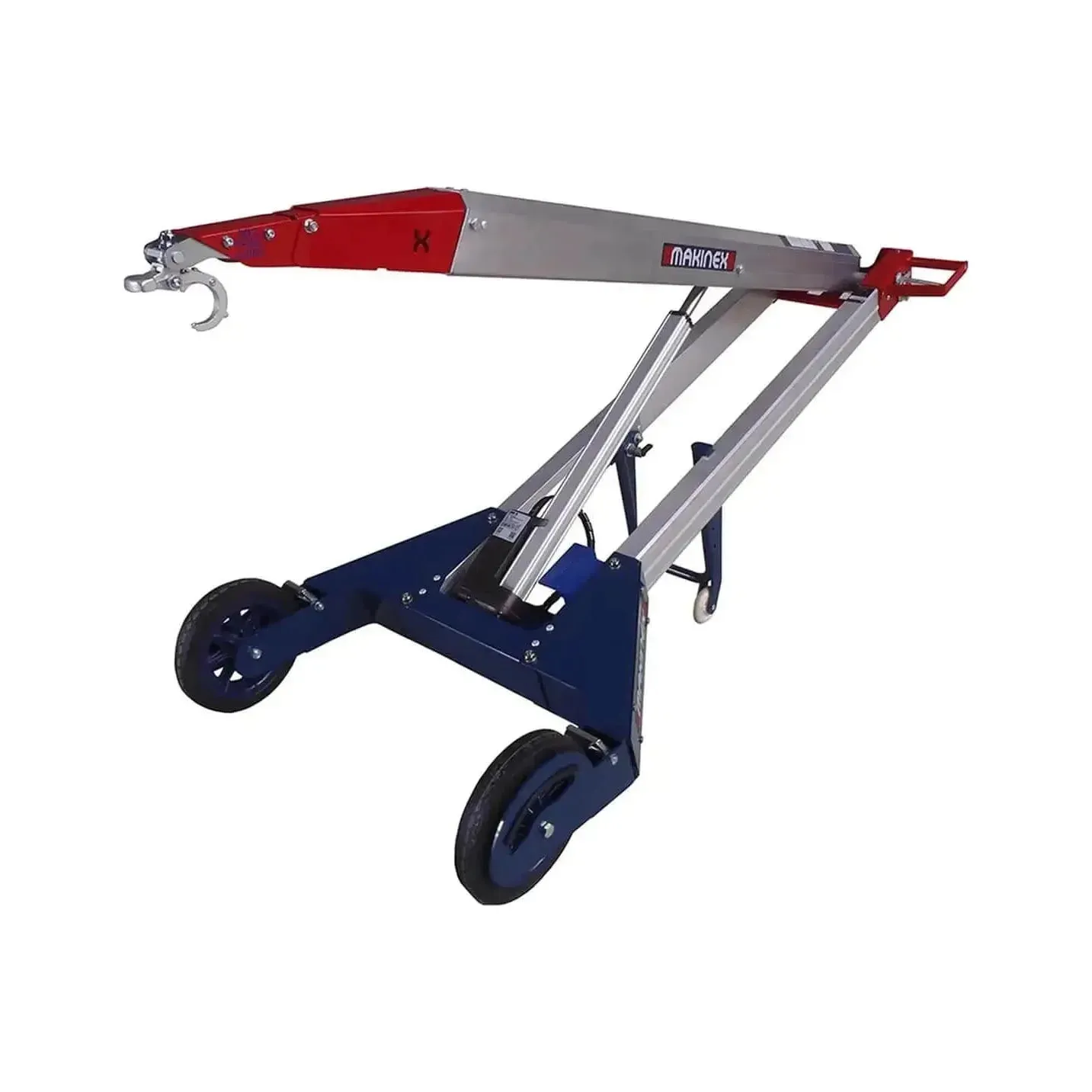

Makinex Powered Hand Truck (PHT) with Hook PHT2-140

Product Description

The Makinex Powered Hand Truck (PHT2-140-US) is a universal materials handling solution that enables one person to safely lift and load equipment or bulky objects weighing up to 140kg (309lbs) on and off trucks and trailers.

Costing a fraction of a budget forklift, the PHT2-140-US is easy to use and does not require any operator licenses. It provides a quick and versatile alternative to using a forklift or tailgate loader for small loads.

The Powered Hand Truck has many applications in workshops, warehouses, factories, depots, distribution companies, and hire and rental yards. Wherever bulky and awkward objects need to be loaded onto vehicles or moved around your facility.

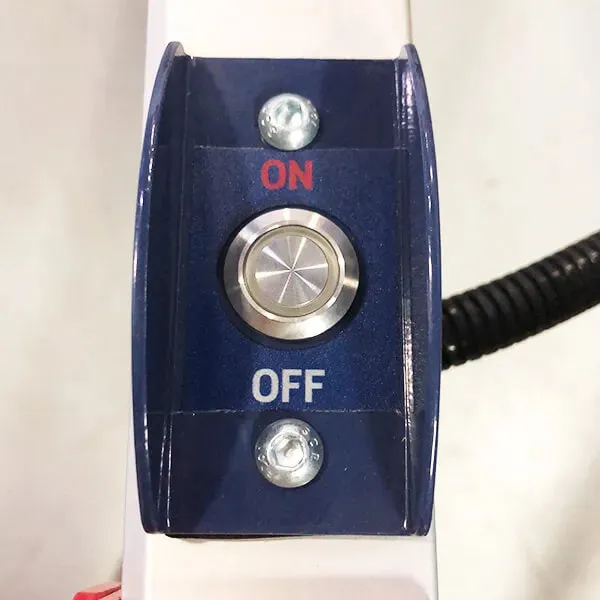

The PHT features a powered lift via a 12V 25A linear actuator. The lifting arm reach is controlled by the user lifting or lowering the handles, and the arm height is controlled via a simple thumb switch.

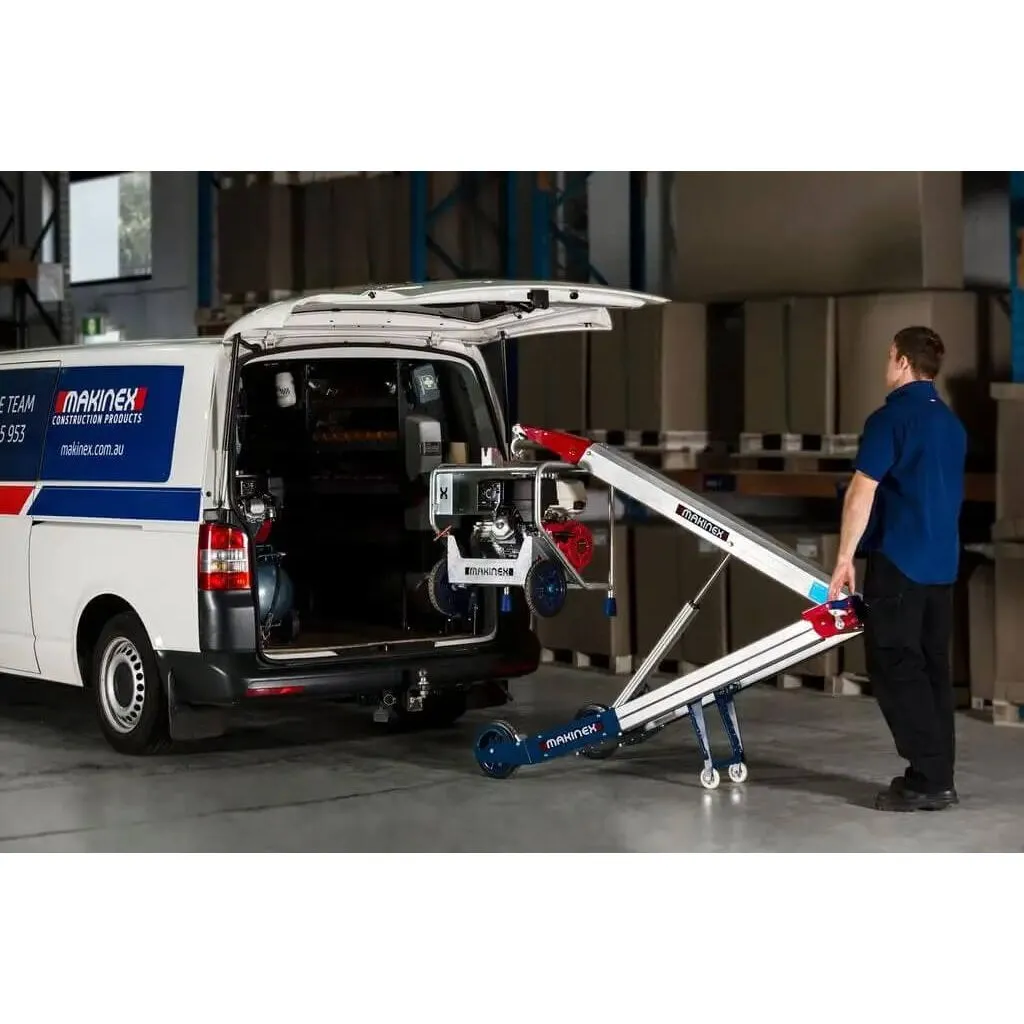

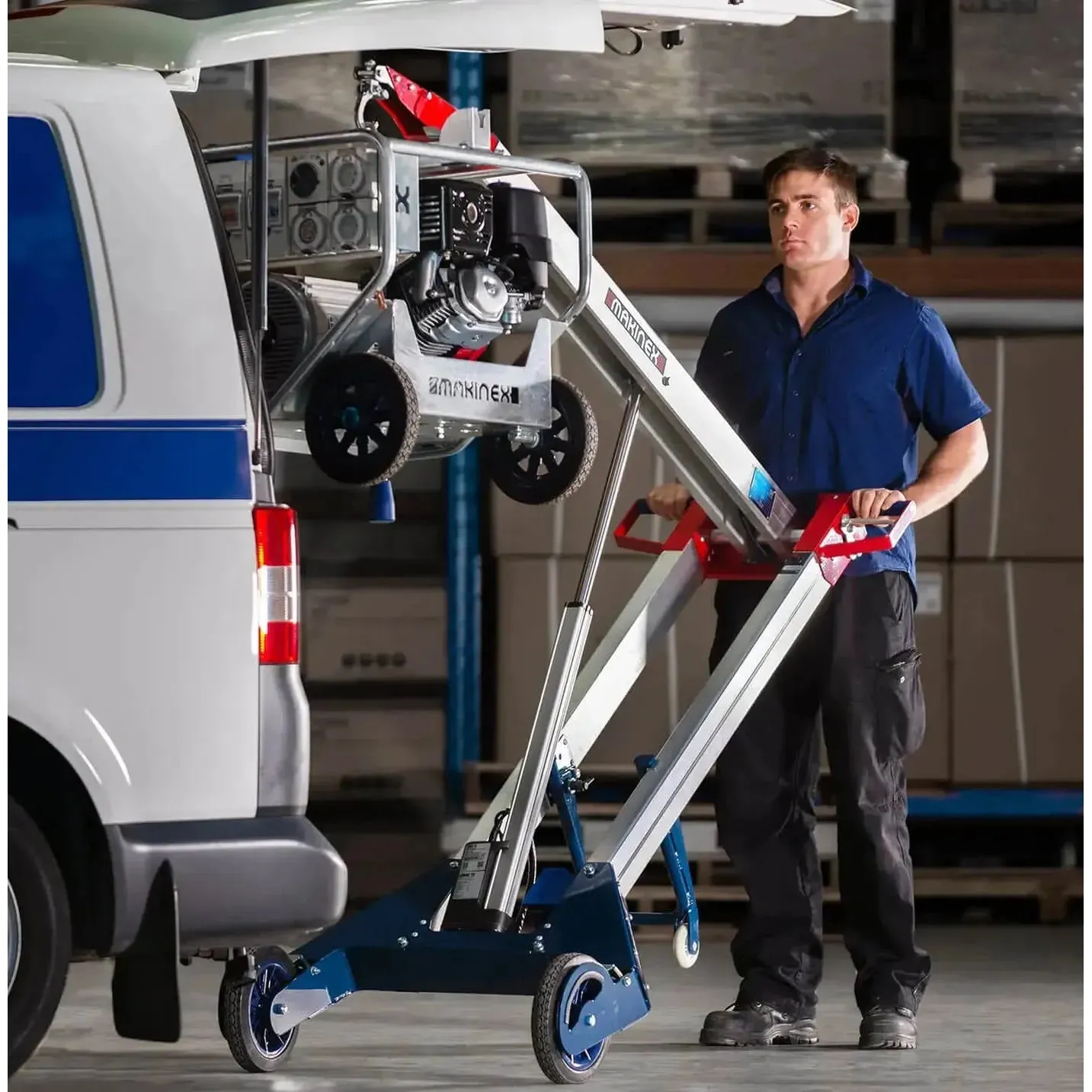

The unique design enables a one-person operation to lift and load directly into a truck, vans, or utility vehicle. One can also place equipment and small loads on bench tops where they can be worked on. It eliminates awkward and dangerous one or two-person lifts and reduces the risk of muscle strains and back injuries from heavy lifting.

The sturdy Powered Hand Truck is surprisingly light and easy to maneuver. After use, it is quickly folded down flat for easy transportation on a truck or storage. It comes with a hook attachment for lifting, moving, and loading small equipment and machinery such as water pumps, generators, air compressors, plate compactors, etc.

Several optional attachments (sold separately) are available for handling different types of objects. These include a fork-lift attachment for lifting, moving, and loading small pallets and skids, and a glass sucker attachment for handling sheets of glass.

Challenges on the Job

Lifting heavy objects on/off customer’s vehicles
Unproductive waiting for second person to assist
Keeping loading bays organized and hazard-free
Awkward shaped objects increase risk of injury
Staff get tired out from lifting things all day
Forklift trucks are clumsy and difficult to use

Solution Benefits

Lets one person safely lift up to 309lbs / 140kg

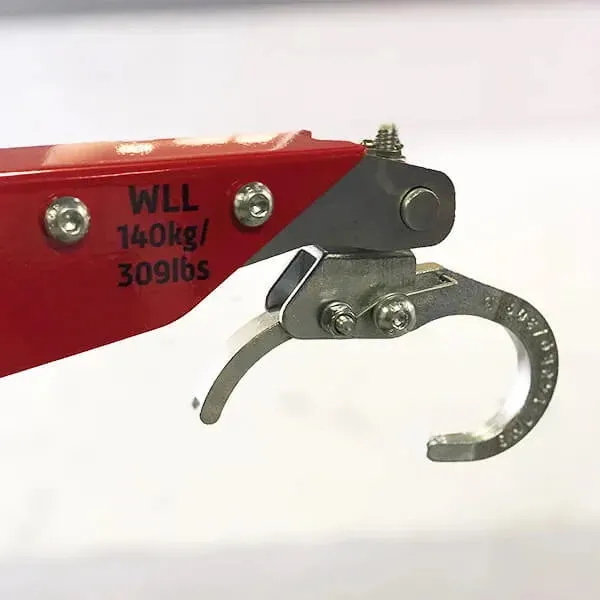

Includes hook for lifting object via lifting eye
Easy to use and requires no licenses to operate
Folds flat for easy storage and transportation
Auto shut off after 10 minutes
Self closing hook for safe lifting
Optional nose extension increases reach 7in / 180mm
Optional rough-surface wheels enable outdoor use
Attachments to handle different type of objects

Specifications

Machine Weight (without attachments)	Total 97lbs (44kg)
Lift Capacity	Up to 309lbs (140kg)
Lift Range / Height (of Hook attachment)	1ft (0.3m) up to 6ft 2in (1.9m)
Power	Linear Actuator 12V 25 Amp
Battery	18V lithium rechargeable
Lift Cycle	Appx 50 average lift cycles per charge
Machine Dimensions	L 6ft 3in (1905mm) x W 2ft 5.7in (755mm) x H 6ft 2in (1930mm); folded – H 10.4in (265mm)
